Price list and order application

VAT not applicable art. 293B of CGI

Item Net price
a-pipes in matt lacquered black plastic



 Full function. Ready for standalone playing over jack output or USB.

Included :
  • 3.5 mm jack output.
  • Mini USB female connector.
  • Operating DEL.
  • On/Off switch.
  • Powered by a single 1.5V AAA battery (rechargeable ou not).
  • 19.5 mm standard stock, compatible with the Great Highlands Bagpipes.
  • Drilling for pluging a support stick (standard chineese stick for example).
  • Mini USB angled and coiled cable
  • Transport case
Not included :
  • Chineese stick
  • Bluetooth link
  • 1.5V AAA battery
  • Canalphones / earbuds
  • Micro USB OTG adapter for Android smartphone
  • Radio link to a-box

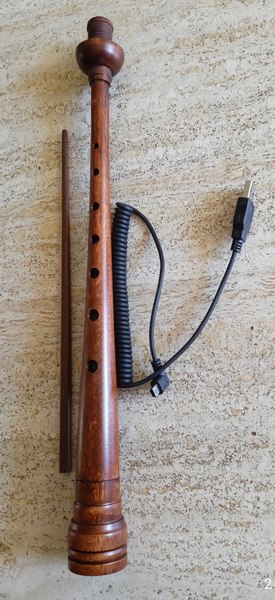

Wooden a-pipes, exotic wood



 Full function. Ready for standalone playing over jack output or USB.

Included :
  • 3.5 mm jack output.
  • Mini USB female connector.
  • Operating DEL.
  • On/Off switch.
  • Powered by a single 1.5V AAA battery (rechargeable ou not).
  • 19.5 mm standard stock, compatible with the Great Highlands Bagpipes.
  • Drilling for pluging a support stick (standard chineese stick for example).
  • Mini USB angled and coiled cable
  • Transport case
Not included :
  • Bluetooth link
  • 1.5V AAA battery
  • Canalphones / earbuds
  • Micro USB OTG adapter for Android smartphone
  • Radio link to a-box

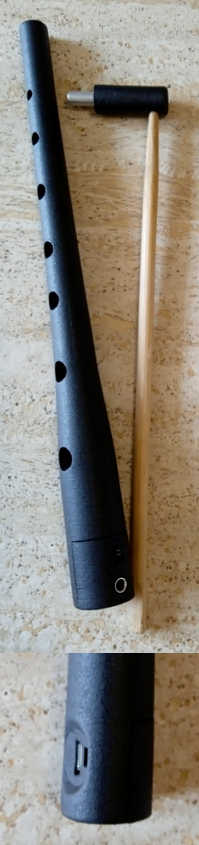

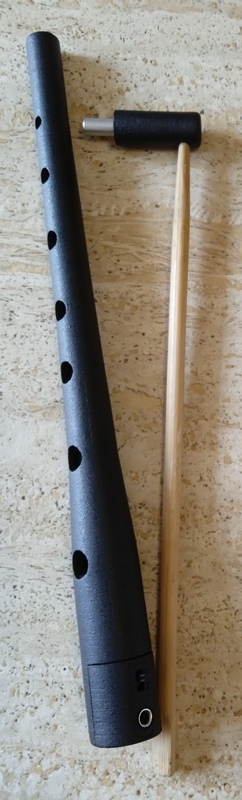

The mini a-pipes in matt lacquered black plastic

Very portable and minimalist, the mini a-pipes nevertheless offers 100% realistic ergonomics.
The position and diameter of the holes are those of the McCallum chanter, as is the diameter of the chanter.
Same functions than the regular a-pipes.
Full function. Ready for standalone playing over jack output or USB.

Included :
  • Dimension: 245mm length, 22mm large at bottom.
  • Full function.
  • Ready for standalone playing over jack output or USB.
  • 3.5 mm jack output.

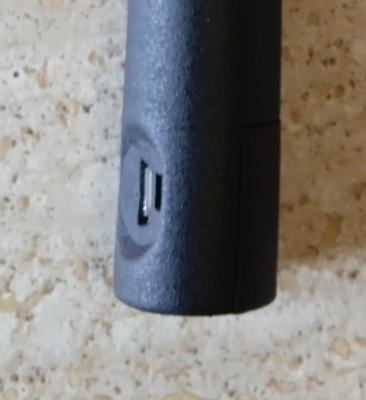

  • Micro USB female connector.
  • Embeded LI-PO battery rechargeable by USB. Continuous playing autonomy: more than 11H. Full charging duration: 30-50mn.
  • Operating DEL.
  • Charging DEL.
  • End of charge DEL.
  • On/Off switch.
  • Separate adapter for pluging a support stick (standard chineese stick for example).
  • Black velvet bag.
  • No bluetooth option.
  • No radio option for a-box link.
Not included :
  • Chineese stick
  • Canalphones / earbuds
  • Micro USB OTG adapter for Android smartphone
  • Transport case
  • Micro USB cable (standard phone cable)

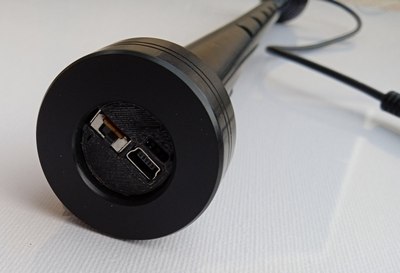

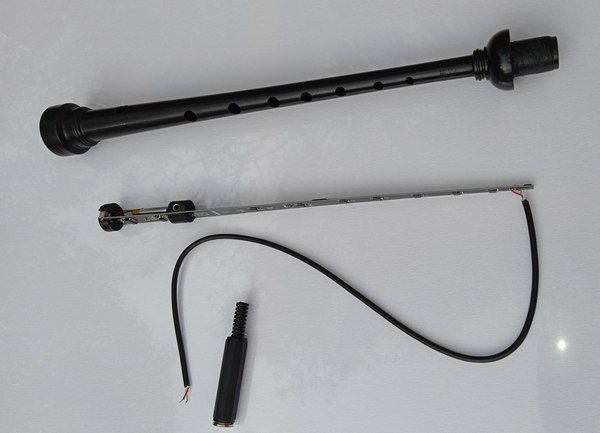

The electronic board (PCB) of the a-pipes to be installed into a regular McCallum chanter




It is possible to insert an electronic board (PCB) of the a-pipes directly into a regular McCallum chanter provided by the customer.
Le chanter should be a McCallum MK1 ou MK2, but some other chanters could fit.
The Jack 3.5 mm connector is accessible through one of both bottom holes near the sole.

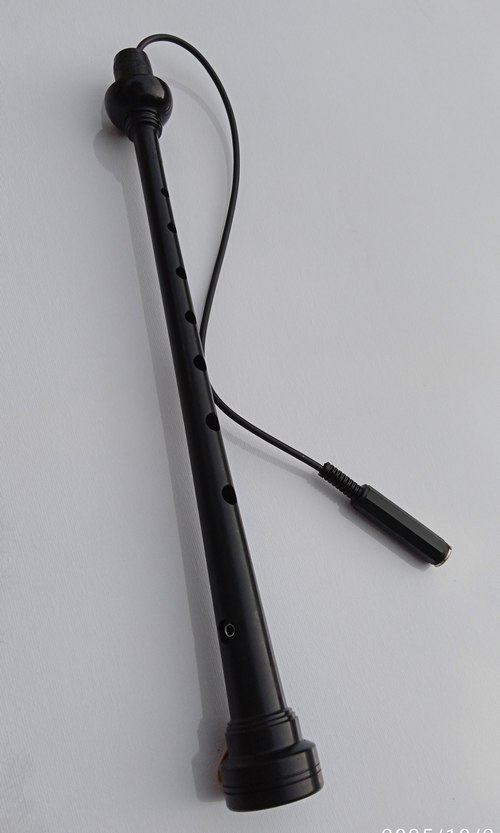

An optional audio cable with a Jack 6.35 female can be installed and enters the bag through the stock (see pictures). By this way it is possible to gently install a wireless repeater into the bag.
Same features as the standard a-pipes.
Included :
  • Jack 3.5 mm output near the bottom.
  • Optional jack 6.35 mm female through the stock.
  • Female micro USB type B connector.
  • Embeded LI-PO battery rechargeable by USB. Continuous playing autonomy: more than 11H. Full charging duration: 30-50mn.
  • Operating DEL.
  • Charging DEL.
  • End of charge DEL.
  • On/Off switch.
  • Optional radio to the a-box.
  • Optional Bluetooth.
No included :
  • Canalphones / earbuds
  • Micro USB OTG adapter for Android smartphone
  • Transport case
  • Micro USB cable (standard phone cable)

Integrated Bluetooth link dedicated to the remote software.
Not compatible with Bluetooh headphones, earbuds or speakers.
Needs to return your a-pipes for mounting.
Micro USB OTG adapter

 Micro USB OTG adapter for connectiong to Android smartphone with micro-USB type B interface.
Black Canalphones / earbuds on rewind bobbin.
Black Canalphones / earbuds

 Black Canalphones / earbuds on rewind bobbin. Male Jack 3.5 mm.
Transport case


Transport case alone : soft internal, removable shoulder strap with D-rings & clips. Material: Nylon and Foam. Dim 39.2 x 7.2 x 11cm (15.43 x 2.83 x 4.33 inch).
a-box wireless repeater

 The a-box wireless repeater + the radio adapter on a-pipes.
For wireless playing your a-pipes with a 1 millisecond latency time.
Can be coupled with MIDI softwares on computer over USB.
Needs to return your a-pipes for mounting if not already installed.
Powered by a mini USB cable.
Jack 3.5 mm audio output. Dimension : 75mm x 28mm x 20mm.
Can be installed when Bluetooth is present on the a-pipes.

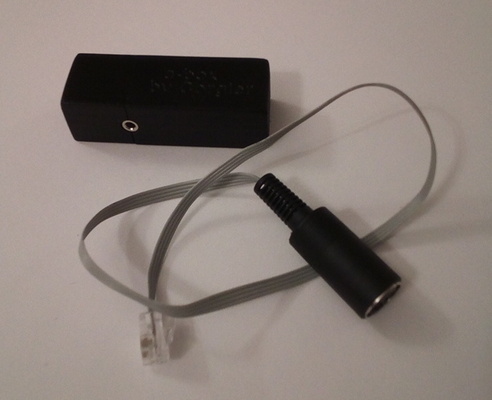

a-box wireless repeater with MIDI output

 The a-box wireless repeater with MIDI output + the radio adapter on a-pipes.
For wireless playing your a-pipes with a 1 millisecond latency time.
MIDI DIN 5 pins 3.3V output.
Deals with standard USB/MIDI converters.
Not suitable with MIDI 5V synthetizers.
Can also be coupled with MIDI softwares on computer over USB.
Needs to return your a-pipes for mounting if not already installed.
Powered by a mini USB cable.
Jack 3.5 mm audio output. Dimension : 75mm x 28mm x 20mm.
Can be installed when Bluetooth is present on the a-pipes.

Shipping rates

Destination Net price
France, Belgium, Luxembourg - MondialRelay
Spain - MondialRelay
Germany - MondialRelay
Italie, Portugal, Austria - MondialRelay
Switzerland
United Kingdom - MondialRelay
USA
Canada
Australia
New Zeland
Other countries Ask us

Availability

Wooden a-pipes 5 working days
Plastic a-pipes 5 working days
Mini a-pipes 5 working days

Guarantee

Two years guarantee (back shipping at your charge).

Order form
